API 5L X65 PSL1/PSL2LSAW Carbon Karfe BututuAna kera shi ta hanyar samar da faranti na karfe na X65 zuwa siffa mai zagaye sannan a yi walda dinkin ta hanyar walda ta atomatik.A cikin samar daAPI 5L X65 PSL1&PSL2LSAW Carbon Karfe Bututu, faranti na sa X65 ana yin su ta hanyar injin gyare-gyaren zuwa siffar zagaye sannan kuma ana walda su ta hanyar walda mai gefe biyu.The samar da tsari na submerged baka welded madaidaiciya kabu karfe bututu hada da JCOE forming fasaha, nada forming submerged baka waldi fasaha da UOE forming fasaha.
Tsarin kera bututu mai tsayin daka-baki (LSAW) shine kamar haka:
Ultrasonic farantin bincike → gefen milling → pre-lankwasawa → forming → Pre-welding → Ciki walda → waje waldi → Ultrasonic dubawa → X-ray dubawa → Fadada → na'ura mai aiki da karfin ruwa gwajin →l.Chamfering → Ultrasonic dubawa → X-ray dubawa → Magnetic barbashi dubawa a tube karshen
| Sunan samfur | LSAW Karfe bututu |
| Tsari | LSAW-UO (UOE), RB (RBE), JCO (JCOE) |
| Daidaitawa | API 5L, API 5CT, ASTM 53, EN10219, GB/T3091, GB/T9711 |
| Takaddun shaida | ISO9001 ISO45001 IS014001 BV BC1 EN10219 EN10210 ASTM A500/501 JIS G3466 EPD PHD |
| Out Diamita | 406mm-1500mm |
| Kaurin bango | 8-50mm |
| Tsawon | 1-12M ko a matsayin bukata |
| Daraja | API X42 X52 X60 X65 X70 GR.A GR.B GR.C,S275JOH,S355JR,S355JOH,S355J2H,S355S235, S420, S460 |
| Surface | Fusion bond Epoxy shafi, Coal Tar Epoxy, 3PE, Vanish Shafi, Bitumen Shafi, Black Oil shafi kamar yadda abokin ciniki ta bukata |

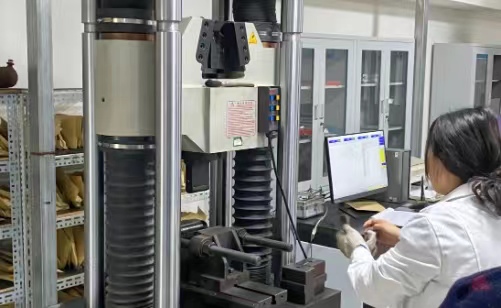

| Gwaji | Binciken Abubuwan Sinadarai, Abubuwan Injini (Ƙarfin Ƙarfin Ƙarfin Ƙarfin Ƙarfin Ƙarfin Ƙarfin Ƙarfafawa, Ƙarfafawaƙarfi, Elongation), Fasaha Properties (Gwajin Lanƙwasa, Gwajin Lanƙwasawa, Gwajin Busa, Gwajin Tasiri), Binciken Girman Girman Waje, HydrostaticGwaji, Gwajin X-ray. |
| MOQ | Ton 5 |
| KARSHE | A fili, Ƙaunar |
| Kunshin | A cikin daure, sako-sako da yanki. |

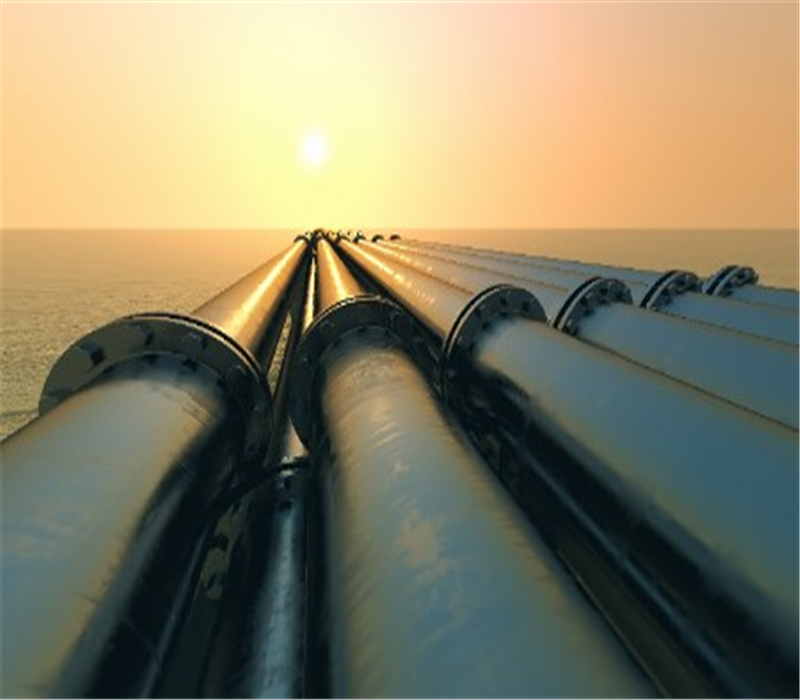

API 5L X65 PSL1/PSL2LSAW Carbon Karfe Bututuyawanci ana amfani da shi a cikin ayyukan bututun mai da iskar gas, a cikin bututun da ke karkashin ruwa, bututun mai ta yankuna masu tsayi da manyan birane.
Aikin Injiniya na Hong Kong

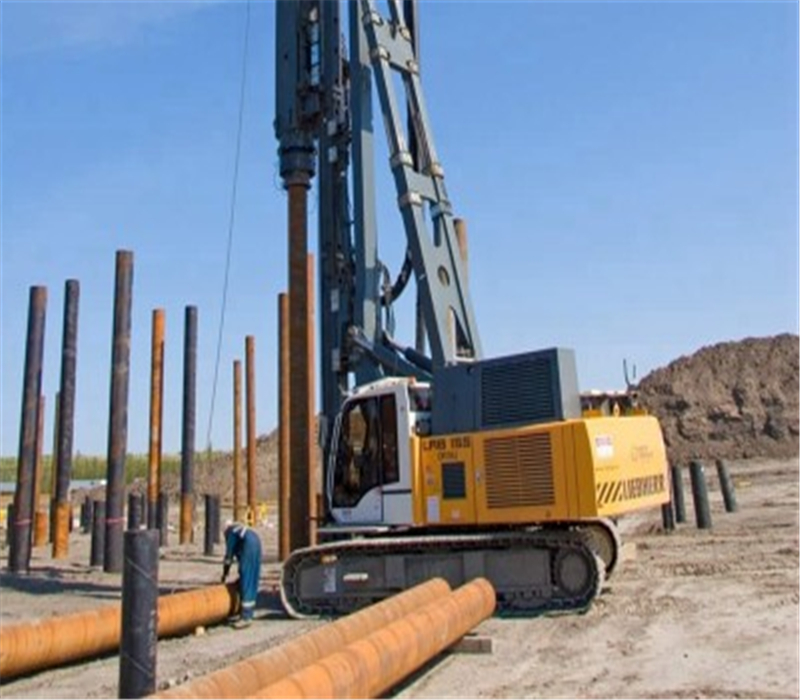

Injiniya Katar
Aikin Injiniya na Iran
Kayayyakin Injini na API 5L GR.B X65 (PSL1) / API 5L X70 (PSL1):
| Daraja | Ƙarfin Haɓaka(MPa) | Ƙarfin Ƙarfi(MPa) | Tsawaitawa A% | ||
|
| psi | MPa | psi | MPa | Tsawaitawa (Min) |
| X65 | 65,000 | 448 | 77,000 | 531 | 18 |
| X70 | 70,000 | 483 | 82,000 | 565 | 18 |
Mechanical Properties naAPI 5LSaukewa: X65 PSL1/PSL2(PSL2) / API 5L Grade X70 (PSL 2):
| Daraja | Ƙarfin Haɓaka(MPa) | Ƙarfin Ƙarfi(MPa) | Tsawaitawa A% | Tasiri (J) | ||
|
| psi | MPa | psi | MPa | Tsawaitawa (Min) | Min |
| X65 | 65,000 | 448 | 87,000 | 600 | 18 | 40 |
| X70 | 70,000 | 483 | 90,000 | 621 | 18 | 40 |

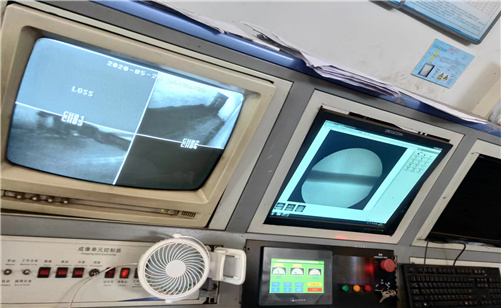

Gwajin RT
Gwajin Hydrostatic
Gwajin UT
Haɗin Gwargwadon Daraja da Kemikal (％)Don API 5LX65PSL1 / API 5L X70 PSL1
| Daidaitawa |
Daraja | Abubuwan sinadaran(%) | |||
| C | Mn | P | S | ||
| API 5L | X65 | ≤0.26 | ≤1.45 | ≤0.030 | ≤0.030 |
| API 5L | X70 | ≤0.26 | ≤1.65 | ≤0.030 | ≤0.030 |
| Girman | Tdaof Bututu | Trashin lafiya1(Kashi na ƙayyadaddun kauri na bango) | |
| Daraja B ko Ƙananan | Darasi X42 ko mafi girma | ||
| <2 7/8 | Duka | +20.- 12.5 | + 15.0.-12.5 |
| > 2 7/8 da <20 | Duka | + 15,0,-12.5 | + 15-I2.5 |
| >20 | Welded | + 17.5.-12.5 | + 19.5.-8.0 |
| >20 | M | + 15.0.-12.5 | + 17.5.-10,0 |
Idan mai siye ya ayyana ƙarancin haƙurin da bai wuce waɗanda aka jera ba, za a ƙara ingantaccen haƙuri zuwa jimlar juriyar haƙuri a cikin kashi ƙasa da kaurin bango mara kyau.

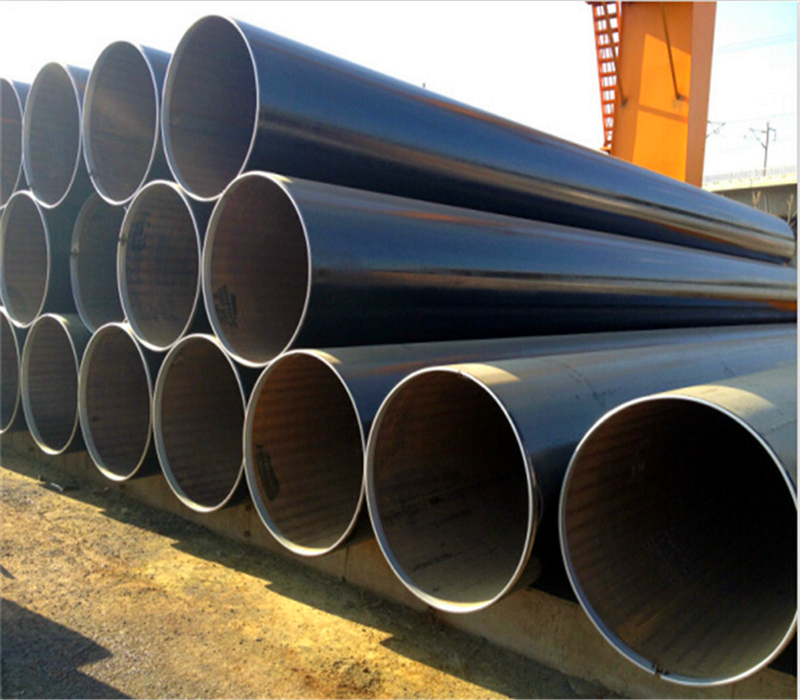

Baƙin Zana
